Description

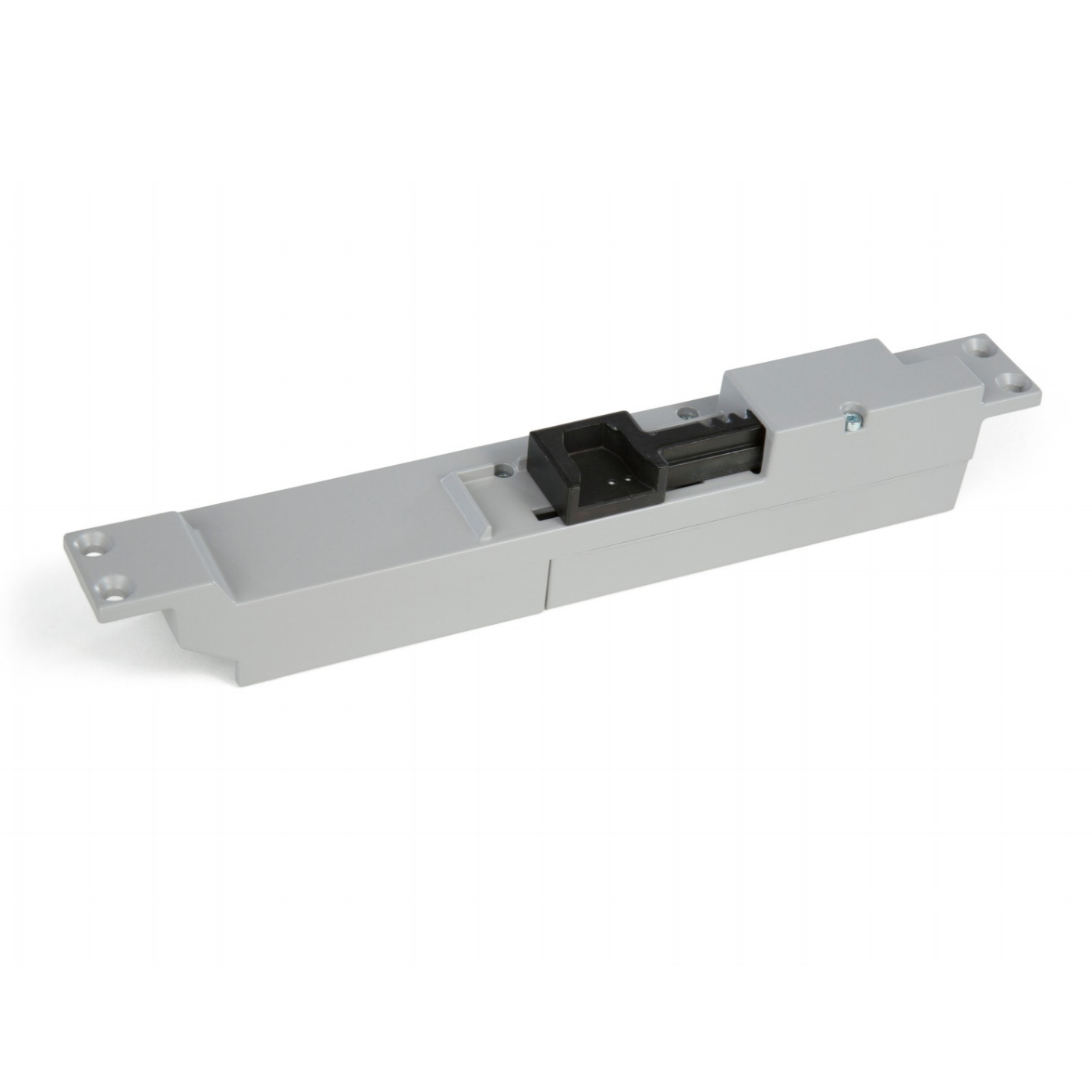

A 24VDC concealed locking / espagnolette actuator that electrically locks and releases the window’s espagnolette system when paired with WindowMaster WMX or WMU chain actuators. Locks counter-clockwise (as seen from inside); suited to handle-free windows.
Key Features:
– Natural and smoke ventilation (EN 12101-2)
– Fire tested to DIN 18232-3 (30 min / 300°C)
– Works in combination with WMX and WMU 836 series chain actuators
– Up to two espagnolette actuators per window
– Three positions: lock, tilt and turn
– WAB 806 espagnolette bracket with automatic emergency detachment included
– Connection cable to be ordered separately
Specifications:
Installation: Integrated | Window Types: Top hung, Bottom hung, Side hung | Espagnolette movement: 18mm | Pressure Force: 750N | Locking Force: 2000 N | Power Supply: 24 VDC, 1 A | Size: 45 x 277 x 42 (H x W x D)mm | Colour: Grey (RAL 7004) | Material: Zinc housing protected against corrosion | Fire test: Approved according to DIN 18232-3, section 3.6 (30 Min./300 °C) | Lifetime: Tested with 10,000 open and close movements, full stroke
Delivery includes: Espagnolette actuator and espagnolette bracket with screws. Supplied, installed and commissioned Australia-wide by Blue Squared, the exclusive Australian WindowMaster partner.
