Description

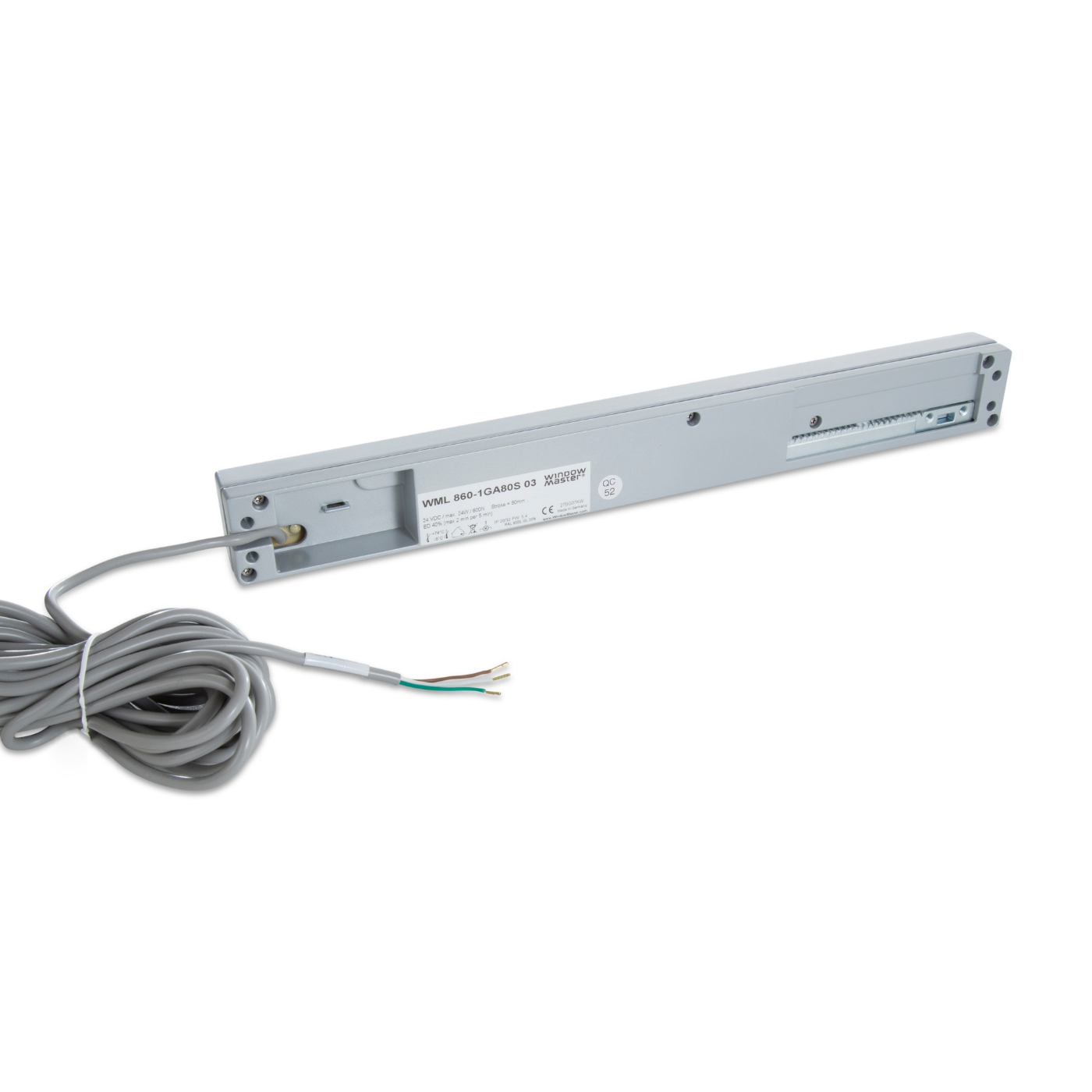

A 24VDC louvre actuator for surface mounting or concealed installation, designed for automated comfort ventilation through louvre windows. Pairs with WindowMaster MotorLink® control panels for precise, quiet louvre control.
Key Features:
– Comfort / natural ventilation for louvre windows
– MotorLink® compatible – intelligent 2-way digital communication with WindowMaster control panels
– Surface mounted or concealed installation
– Stroke 10–80mm, programmable in 10mm increments
– Synchronisation of up to four louvre actuators – no external module needed
– Genuine position feedback and three speeds when used with a MotorLink® control panel
– External safety edge can be connected directly (version ‘E’)
Specifications:
Installation: Integrated, Surface mounted | Window Types: Louvre | Stroke: 10 – 80mm, in increments of 10mm | Pressure Force: 600N | Traction Force: 600N | Locking Force: 2000 N | Operating Speed: Programmable from 0.5mm/s to 1.5mm/s | Power Supply: 24 VDC, 1 A | IP Rating: IP 20 | Size: 30,5 x 385 x 42 (H x W x D)mm | Colour: Grey | Material: Corrosion protected housing and grey cable with fast-in/fast-on connector
Delivery includes: Louvre actuator with 5m cable with fast-in/fast-on connector. Supplied, installed and commissioned Australia-wide by Blue Squared, the exclusive Australian WindowMaster partner.
Specifying the WML 860 for a project?
Blue Squared is the exclusive Australian partner for WindowMaster. Send us your drawings or window schedule and our team will recommend the right actuators and controls, design the system and quote supply, installation and commissioning. We aim to respond within 48 hours.
Get a Free System Design & QuoteRequest BIM / CAD Files
Prefer to talk it through? Call 1300 85 12 12 – Sydney, Melbourne, Brisbane and Adelaide.
