Description

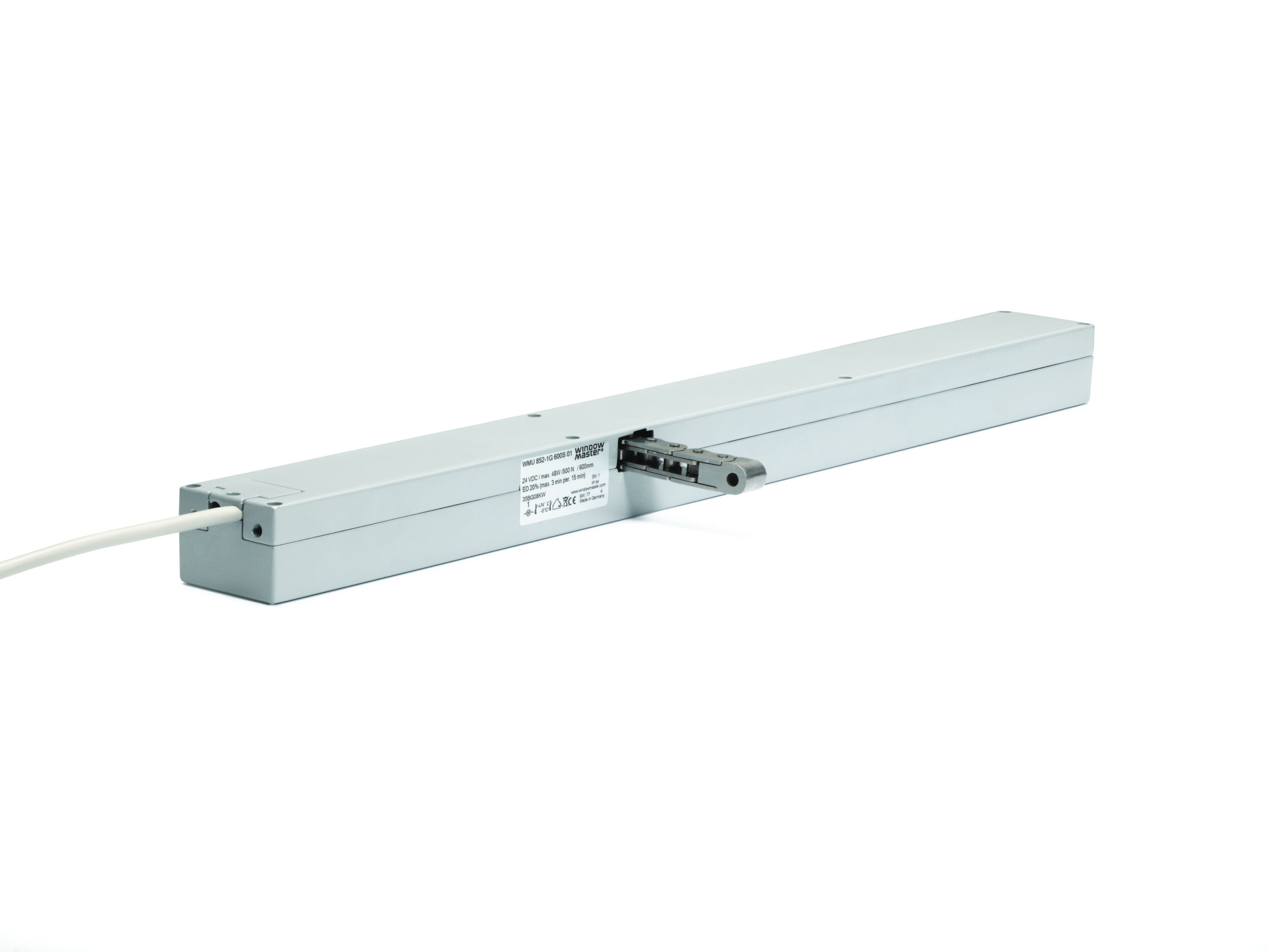

A high-performance, medium chain actuator specially designed for large and heavy windows – an elegant alternative to spindle actuators. Suitable for comfort and smoke ventilation. Compatible with top hung, bottom hung, turning and pivot windows.
Key Features:
– Synchronisation of up to 4 window actuators with no external module required
– Genuine position feedback and 3 speeds with MotorLink® control units
– TrueSpeed™ technology – opening from 1mm/s to 12mm/s, completely silent operation
– Soft close function and built-in electronic end stop
– Electronics programmable post-installation via WAT 100 programming box
– Integrated reverse function for extended window gasket life
– New five-pole plug solution for easy installation
– Ability to connect pressure safety strips
– UL certified (UL325 / CSA C22.2 no.247-14)
Specifications:
Installation: Surface mounted | Window Types: Top hung, Bottom hung, Turning, Pivot | Chain Stroke: 400mm / 500mm / 600mm | Force: 300N pressure & traction, 3000N locking | Power Supply: 24VDC, 1A | Size: 42 x 623 x 57mm (H x W x D) | Colours: Grey (RAL 9006), White (RAL 9010), Black (RAL 9005) | Material: Aluminium housing with steel chain
Delivery includes actuator with 5m cable. Brackets and extension cables ordered separately.
