Description

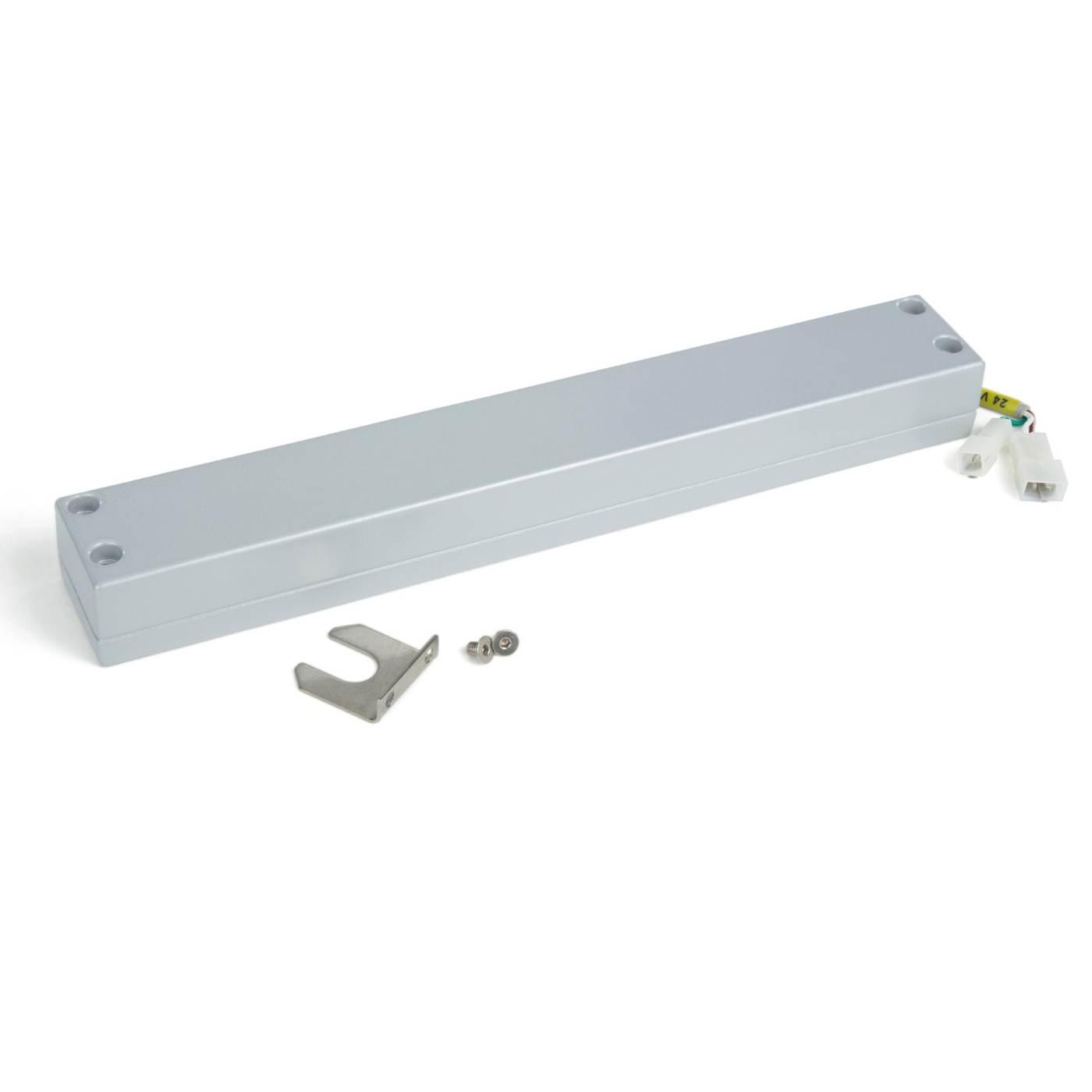

A compact 24VDC locking / espagnolette actuator that automatically locks and releases the window’s espagnolette system while maintaining the window’s CE approval. Adds weather tightness and security to automated windows, surface mounted or concealed in aluminium, timber or uPVC frames.
Key Features:
– Natural ventilation, B300 tested to EN 12101-2:2003
– MotorLink® compatible – intelligent 2-way digital communication with WindowMaster control panels
– 2000N locking force per espagnolette
– Surface mounted or concealed installation
– Single or double versions – works with up to four window actuators per window
– Programmable speed from 1mm/s to 20mm/s
– Increased weather and burglary protection
Specifications:
Installation: Integrated, Surface mounted | Window Types: Bottom hung, Side hung, Top hung | Espagnolette movement: 18mm | Pressure Force: 500N | Traction Force: 500N | Locking Force: 2000 N | Operating Speed: Programmable from 1mm/s to 20mm/s | Power Supply: 24 VDC, 1 A | IP Rating: IP 20 | Size: 30 x 285 x 42 (H x W x D)mm | Colour: Grey (RAL 9006) | Material: Zinc housing protected against corrosion | Fire test: B300 tested according to EN 12101-2:2003 | Lifetime: Tested with 11,000 open and close movements, full stroke
Delivery includes: Espagnolette with 100mm cable with fast-in / fast-on stick and espagnolette bracket. Supplied, installed and commissioned Australia-wide by Blue Squared, the exclusive Australian WindowMaster partner.
