Description

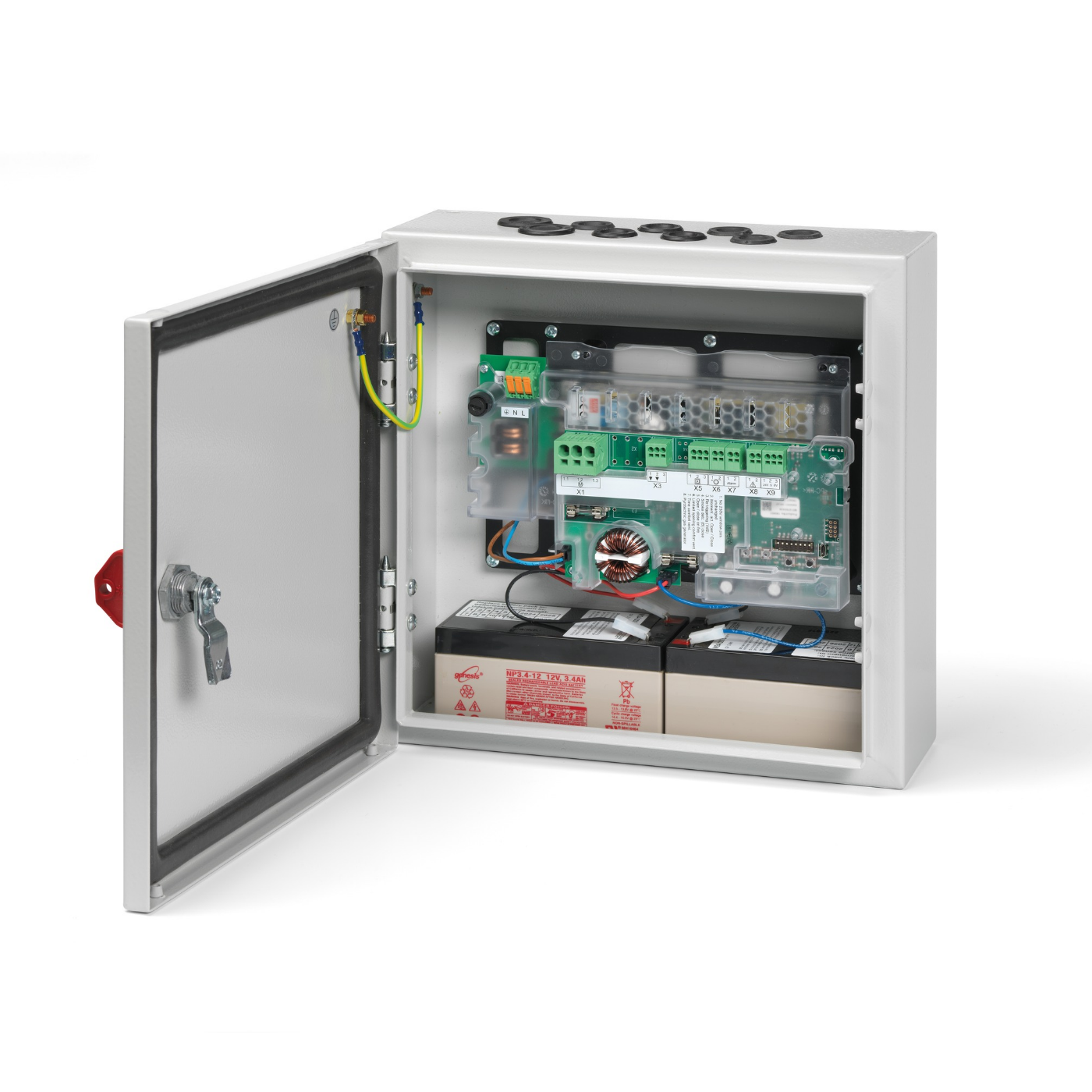

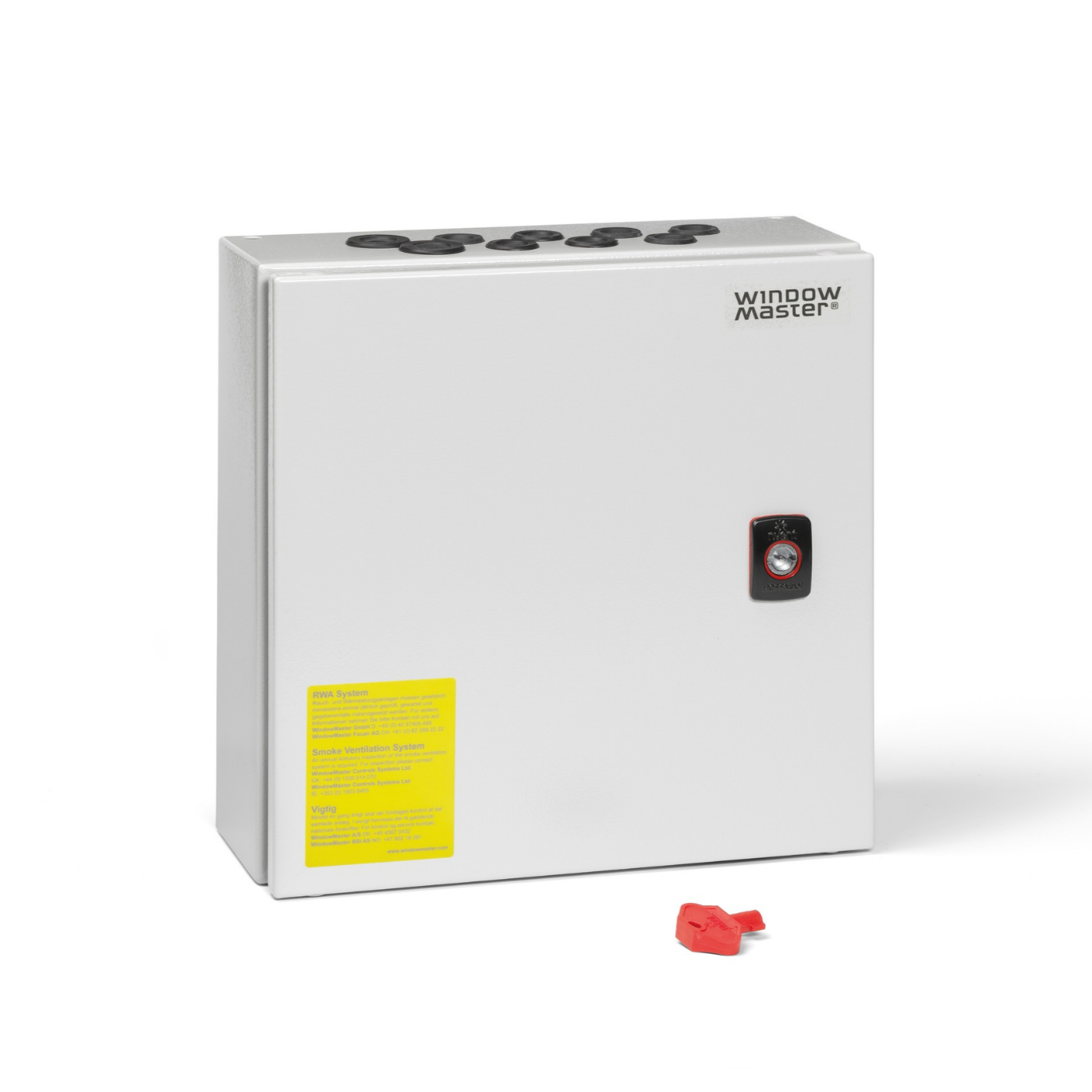

A 6A CompactSmoke™ smoke control panel in a robust IP 54 metal housing, controlling smoke and comfort ventilation for one room or zone. Suited to stairwells, plant areas and building sections where a tougher enclosure is required.
Key Features:
– Smoke ventilation certified to EN 12101-10 and ISO 21927-9
– Natural / comfort ventilation from the same panel
– Controls ±24V DC standard actuators and WindowMaster MotorLink® actuators
– 6A output – one smoke / comfort ventilation group
– IP 54 metal housing (RAL 7035)
– 8 DIP switches for fast configuration
– Bus technology for break glass units – significantly reduces cabling on site
– Auto-reset version available (WSC 106 MH S AR)
Specifications:
Output Current: 6A | Primary Voltage: 230V AC, 50Hz | Smoke Zones: 1 | Ventilation Groups: 1 | Motor Lines: 1 motor line | IP Rating: IP 54 | Housing: Metal housing | Size: 300 x 300 x 120 (H x W x D)mm | Weight (incl. batteries): 7kg
Delivery includes: Smoke control panel with 2 back-up batteries 12V/3.4Ah (2 x WSA 003), 1 end of line module (WSA 514) and 7 x 10kOhm resistors. Supplied, installed and commissioned Australia-wide by Blue Squared, the exclusive Australian WindowMaster partner.
