Description

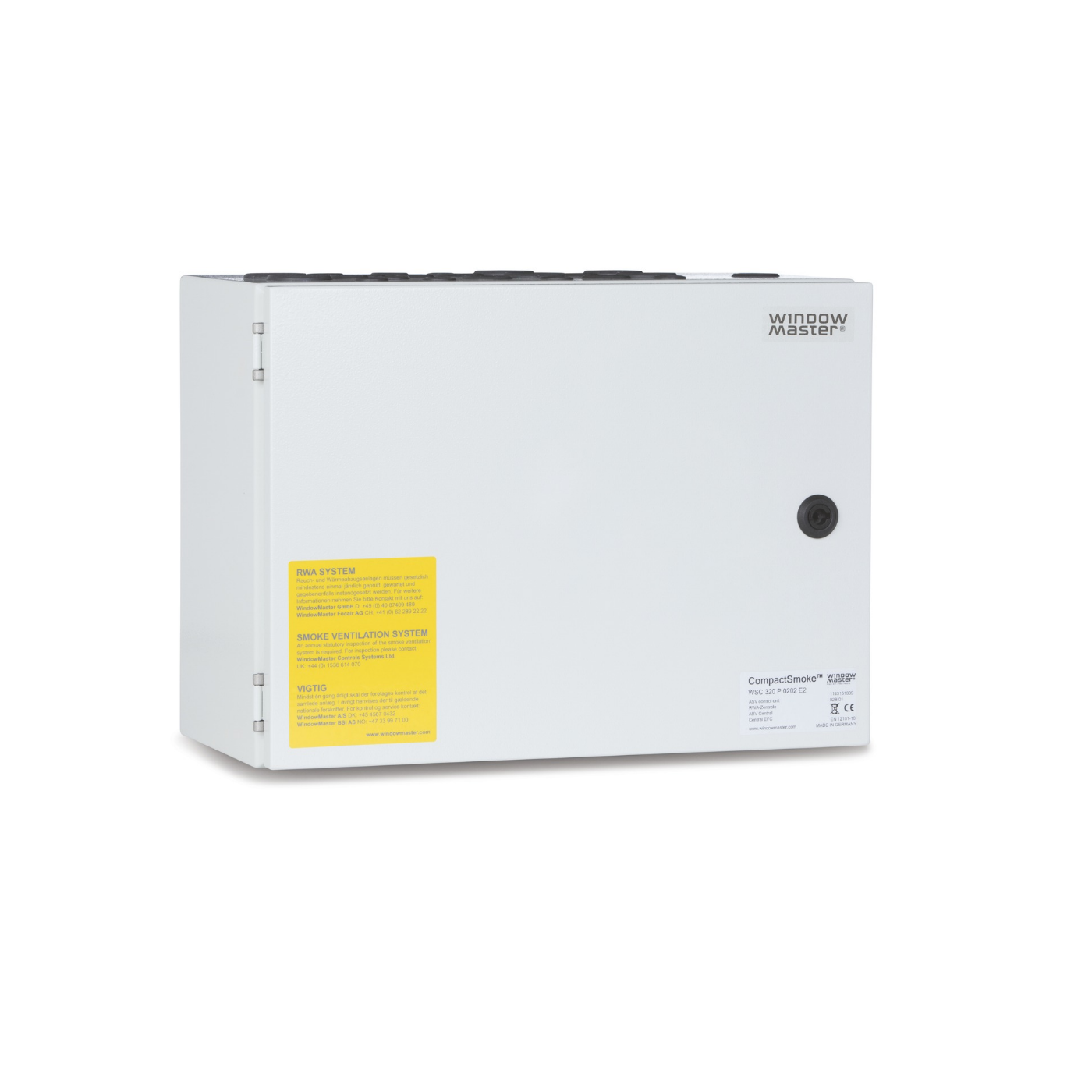

WindowMaster’s CompactSmoke™ PLUS touch-screen smoke control panels combine certified smoke ventilation with everyday comfort ventilation and full BMS integration. The WSC 310 PLUS (10A) serves up to 2 smoke / 2 comfort ventilation groups; the WSC 320 PLUS (20A) serves up to 10. Blue Squared has installed WSC 320 PLUS panels with BACnet/IP integration on projects including 60 Union Street, Pyrmont and the Galuwa Recreation Centre, Lane Cove.
Key Features:
– Smoke ventilation certified to EN 12101-10 and ISO 21927-9
– Built-in 2½” LCD touch screen – configure, commission and troubleshoot without a PC
– BMS integration via BACnet (IP and MS/TP), KNX and Modbus
– Fire indicator panel (FIP) input for smoke activation
– Controls ±24V DC standard actuators and WindowMaster MotorLink® actuators
– Up to three actuator speeds: fast smoke (H&S), audible manual, and near-silent automatic comfort ventilation
– Wind-direction-based smoke ventilation – only a wind direction sensor needed, no extra modules
– Bus technology for break glass units – significantly reduces cabling on site
– Compatible with NV Embedded® intelligent indoor climate control
Specifications:
WSC 310 PLUS: Output Current: 10A | Smoke / Ventilation Groups: 2 | Size: 300 x 400 x 120 (H x W x D)mm | Weight (incl. batteries): 10.8kg — WSC 320 PLUS: Output Current: 20A | Smoke / Ventilation Groups: 2 or 10 | Size: 300 x 400 x 210 (H x W x D)mm | Weight (incl. batteries): 16.6kg — Both: Primary Voltage: 230V AC, 50Hz (85-264V AC, 47-63Hz) | Field Bus: BACnet, KNX, Modbus | IP Rating: IP 54 | Housing: Metal housing | Colour: Grey (RAL 7035)

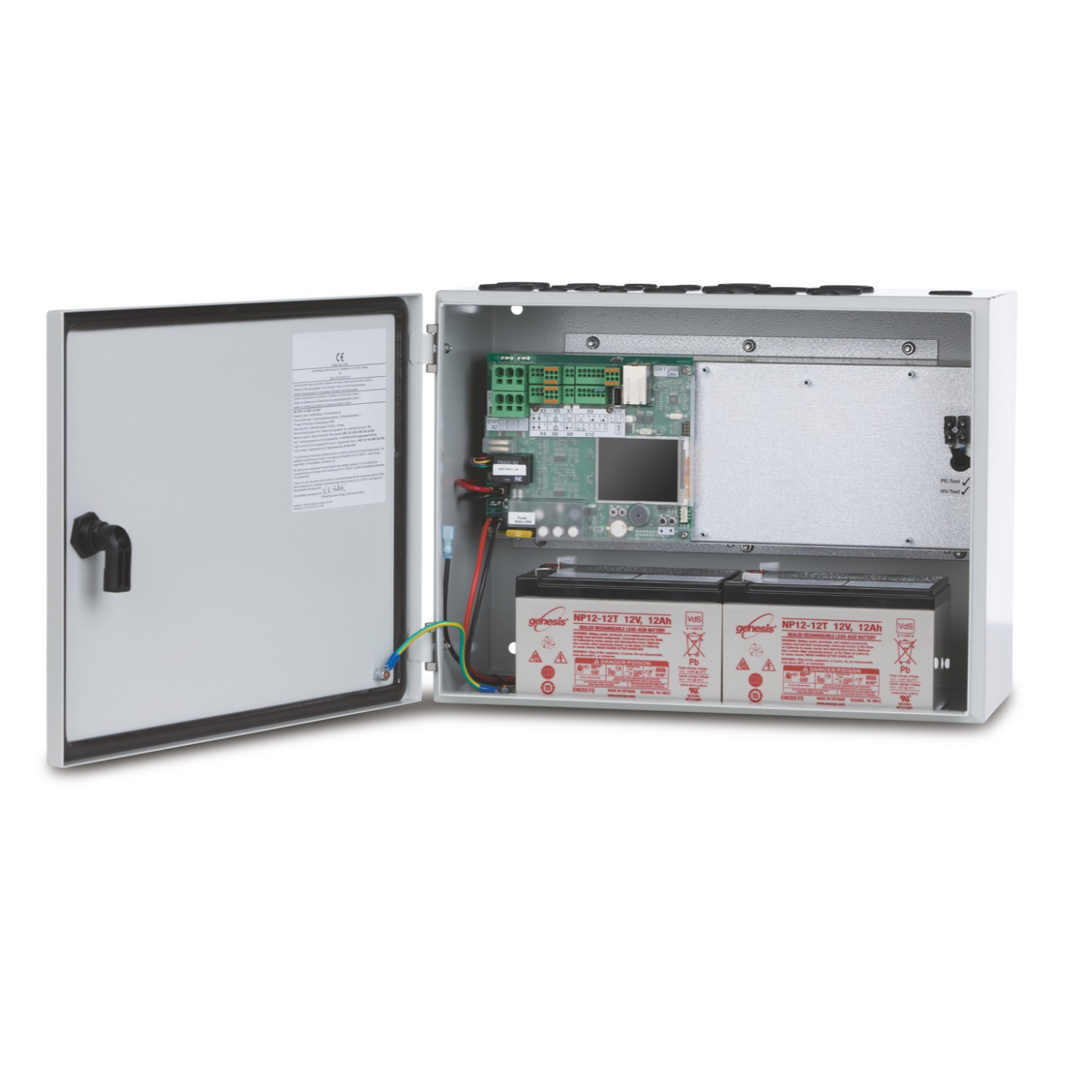

Delivery includes: Smoke control panel with WSA 501 10kΩ resistors (10 pcs), WSA 510 end of line modules and back-up batteries (WSC 310 PLUS: 2 x WSA 007; WSC 320 PLUS: 2 x WSA 012). Supplied, installed and commissioned Australia-wide by Blue Squared, the exclusive Australian WindowMaster partner.
Specifying the WSC 310 / 320 PLUS for a project?
Blue Squared is the exclusive Australian partner for WindowMaster. Send us your drawings or window schedule and our team will recommend the right actuators and controls, design the system and quote supply, installation and commissioning. We aim to respond within 48 hours.
